Tidying up my trim shop the other day I came across a bunch of FB/EK stainless, I'll assume most are anyway.
Is someone able to run a tape measure over the various trims so I can sort them out and put them up for sale?

Can do tonight mate.

Is that the set up on Gumtree at the moment? I am missing some trim off my ek sedan rear door cards so I'm keen. Just not keen enough to become the proud owner of all 26 pieces. I can run a tape over what I have and let you know if Blacky doesn't beat me to it.

Well my memory is shot - it’s the fronts I’m missing the top trim for.
Pictures might help my description

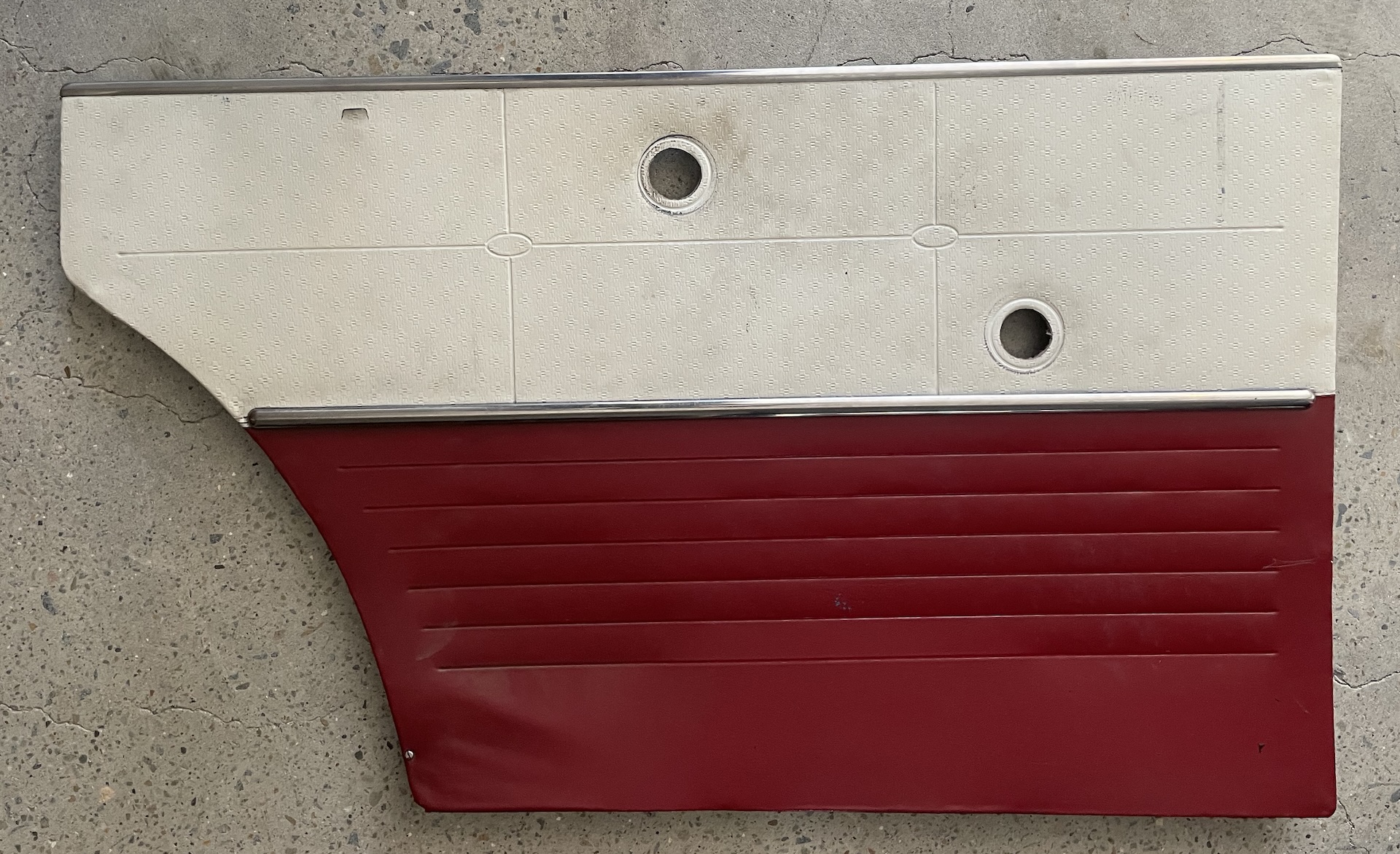

Front Rear Rear Top Back Side Rear Top Front Detail Rear Top Corner Detail Centre Trim Profile Assuming the cards I have are EK…..

Rear Top Trim 766mm x 6mm on the front, 16.5 on the back and there with a 90 degree radius at each end. Width is roughly 6mm

Rear Centre Trim - 652mm x 12mm. Radius at both ends and approximately 4-5mm high

Front Centre Trim - 415mm x 12mm. Radius at both ends and approximately 4-5mm high

Front Upper Trim - Missing. Sure someone else can help. As a rough guide, based on the indent in the vinyl on one card, it looks to be 6mm on the front and 16.5 mm on the back- same as rear cards. The trim is straight for 520mm and curves for 400mm to meet the centre trim.

funkyscooter wrote: ↑Mon Nov 18, 2024 1:17 pm Is that the set up on Gumtree at the moment? I am missing some trim off my ek sedan rear door cards so I'm keen. Just not keen enough to become the proud owner of all 26 pieces. I can run a tape over what I have and let you know if Blacky doesn't beat me to it.

Not me, I'm not sure what I have at the moment.

funkyscooter wrote: ↑Mon Nov 18, 2024 2:23 pm Rear Top Trim 766mm x 6mm on the front, 16.5 on the back and there with a 90 degree radius at each end. Width is roughly 6mm

Rear Centre Trim - 652mm x 12mm. Radius at both ends and approximately 4-5mm high

Front Centre Trim - 415mm x 12mm. Radius at both ends and approximately 4-5mm high

Front Upper Trim - Missing. Sure someone else can help. As a rough guide, based on the indent in the vinyl on one card, it looks to be 6mm on the front and 16.5 mm on the back- same as rear cards. The trim is straight for 520mm and curves for 400mm to meet the centre trim.

Front Upper Trim: 926mm long x 9.5mm wide. Radius at trailing (horizontal run) edge, leading (vertical run) edge is open.

Cheers,
Harv

Thanks everyone, anyone run a tape over their FB stainless?

stinky wrote: ↑Wed Nov 20, 2024 7:19 pm Thanks everyone, anyone run a tape over their FB stainless?

Have put a reminder in my phone to do it tonight for you Stinky

funkyscooter wrote: ↑Mon Nov 18, 2024 2:23 pm Well my memory is shot - it’s the fronts I’m missing the top trim for.

I've got a pair, not sure of condition, I can send a picture if you are interested.

Fb front -



Rear




Sent from my iPhone using Tapatalk

stinky wrote: ↑Wed Nov 20, 2024 8:01 pm

funkyscooter wrote: ↑Mon Nov 18, 2024 2:23 pm Well my memory is shot - it’s the fronts I’m missing the top trim for.

I've got a pair, not sure of condition, I can send a picture if you are interested.

Yep very keen, please send pics.
Thanks

Blacky wrote: ↑Wed Nov 20, 2024 9:59 pm Rear

Thanks Blacky, is that first Rear picture correct? Looks like the front card again.

Sorry , my bad - about 590 and 750mm for the rears mate




Sent from my iPhone using Tapatalk
