Radiator / Fan / Engine mounting?

Post by Lex68 »

Gday FBEK'ers

First I'll describe the mounting then the my radiator issue.....

Mounted the eng last week, its a 132 (2 x strommies with speco intake manifold). I required the smaller type front eng mount to suit the timing cover and outrigger. The engine seems to be sitting ok, but I do think for some reason it may be sitting rearward too much? as the block is about 10mm from touching firewall seam? I have adjusted a spare accelerator linkage to fit around the speco intake manifold however it hits the rear of the rocker cover when the movement of the accelerator linkage is going through the acceleration movement and before full throttle (I'm assuming) as I don,t have the carbies linked etc. (may have to go cable option on this one?)

Now for the radiator, I have two types and after checking model numbers, I have, 7416663 EJ and 7409838 FE-EK.
The EJ model is in good nick but as I found out the fan protrudes above the radiator, :thumbsdown: So I temp fitted the FE-EK radiator (core leaks) and noticed the fan will cut through top hose when it is fitted :roll:

Apologies for the long thread, but need to paint the picture. Similar problems, advice and options?
(use EJ radiator and trim fan to suit hose and accommodate safety?)
Feedback is appreciated. :thumbsup:
Attachments

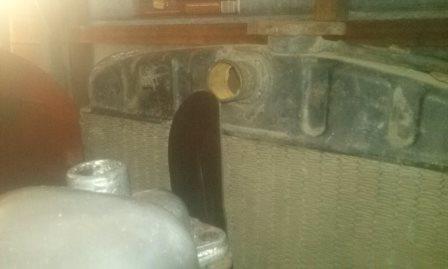

Correct radiator, fan will still hit top hose, WTF ?
Correct radiator, fan will still hit top hose, WTF ?

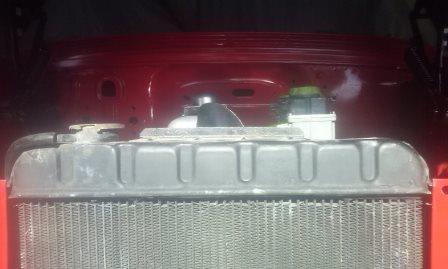

Fan protruding, not safe, and hose fitment issues
Fan protruding, not safe, and hose fitment issues
Blacky
Posts: 13446
Joined: Tue Jul 20, 2004 8:58 am
State: WA
Location: up in the Perth hills

Re: Radiator / Fan / Engine mounting?

Post by Blacky »

SunnyTim wrote:I suspect you have an EJ crossmember in the car which places the motor too far back and too high. You can redrill the front mounting holes and shim the rear mount brackets where the bolt to the subframe or change out the cross member to an FB EK one...
Told you he would know :D :lol:
I started with nothing and still have most of it left.


Foundation member #61 of FB/EK Holden club of W.A.
User avatar
Lex68
Posts: 128
Joined: Wed Aug 15, 2012 10:20 pm
State: QLD
Location: Brisbane

Re: Radiator / Fan / Engine mounting?

Post by Lex68 »

Blacky

Yep :thumbsup: He da man :D
User avatar
Lex68
Posts: 128
Joined: Wed Aug 15, 2012 10:20 pm
State: QLD
Location: Brisbane

Re: Radiator / Fan / Engine mounting?

Post by Lex68 »

G'day SunnyTim, :thumbsup:


I can imagine the shims raising the rear, but I cant really picture the front lowering though, I need to accommodate the radiator hose clearance. After measuring the height differences between the 132 and 138 Front engine covers, and the 138 cover will lower it by 40mm. I can see a difference in the plate size however the bolt holes seem to be the same. Do you know of this being done? While I'm at it I'll replace the fibre gear get a timing gear set.
